V2 Foil Mast Compatibility Guide
The NoLimitz V2 is offered with a bonded on, dedicated adapter made of hard anodized aluminum that fits the foil brand of your choice's fuselage.
Fuselage adapters currently available: Lift, F-One, Axis, Unifoil, Takuma 3 Bolt (M6), Takuma Kujira HD 2 Bolt (M8), Triton Monowing, , Mike's Lab, Cabrinha, Sabfoil, and Sabfoil Kraken.
The V2 is not offered with a universal adapter. The adapter it comes with will only fit that fuselage. However, Jim Stringfellow makes a wide variety of adapters that go onto our Takuma 3 bolt adapter, which makes that mast compatible with a wide variety of foil brands. Please see the video below for more information.
Lift Foils
Bolts: M6 X 1.00mm x 25mm (2x)
Unifoil
Bolts: M8 x 1.25mm x 25mm (2x)
F-One
Bolts: M6 X 1.00mm x 30mm (3x)
Takuma Kujira HD
Bolts: M8 X 1.25mm x 25mm (2x)

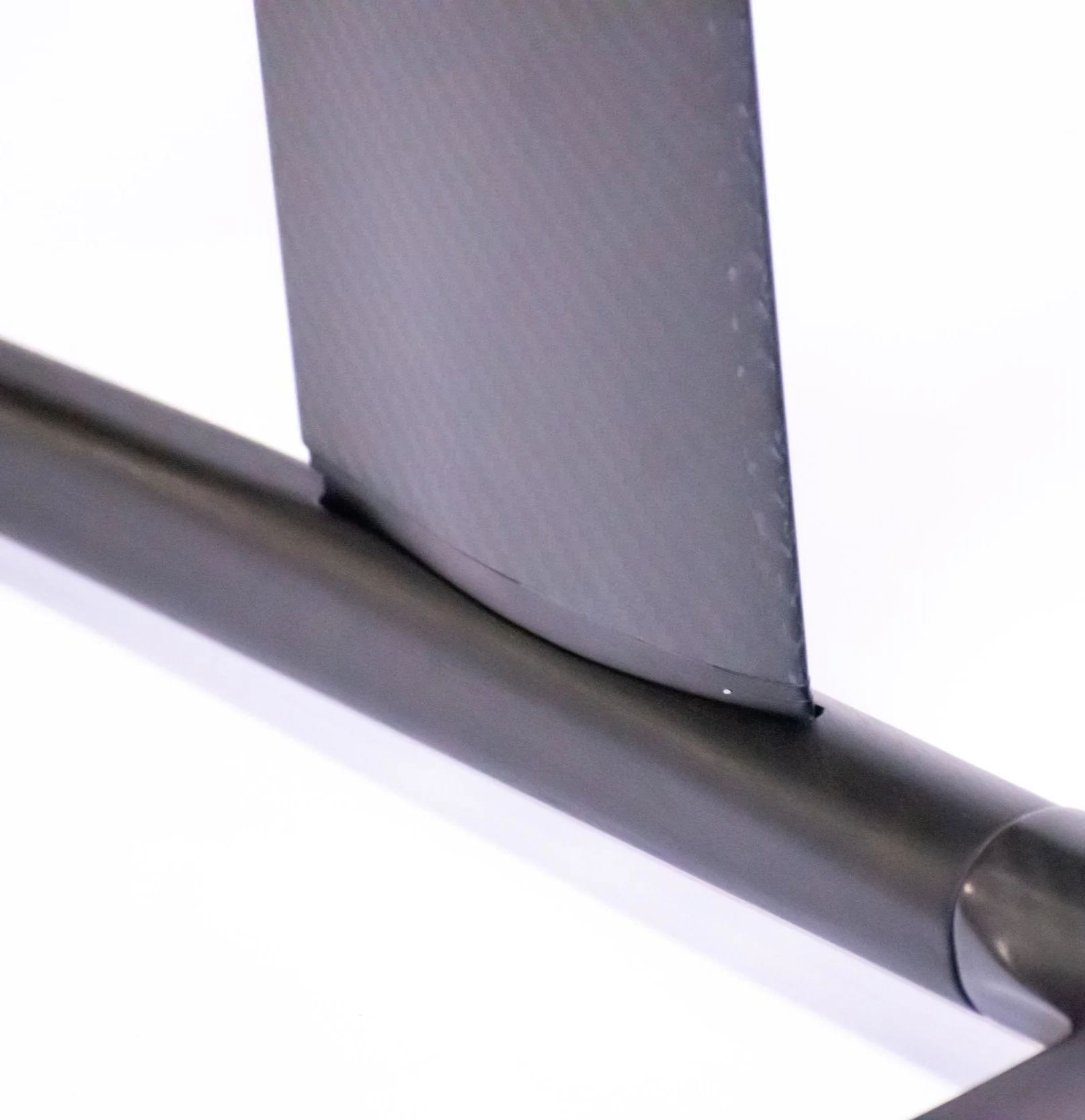

Takuma 3 Bolt
Bolts: M6 X 1.00mm x 25mm (3x)
Axis Foils
Bolts: M8 X 1.25mm x 25mm (2x)

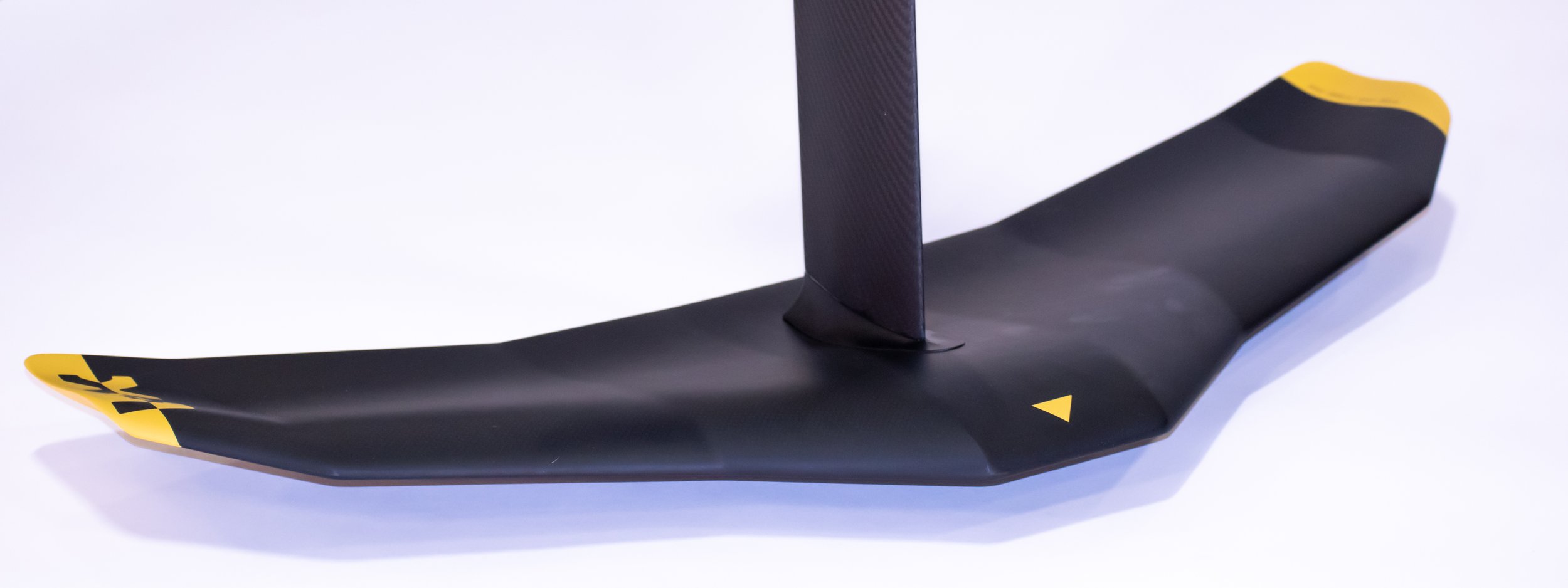

Triton Monowing
Sabfoil Kraken
Bolts: M8 X 1.25mm x 30mm (2x)

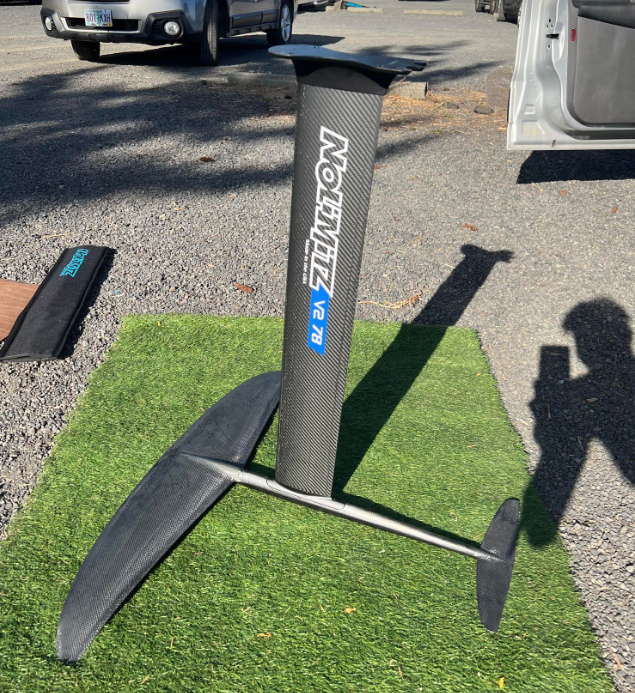

Mike’s Lab
Bolts: Bolts: M6 X 1.00mm x 30mm (3x), M5 X 1.00mm x 30mm (1x)

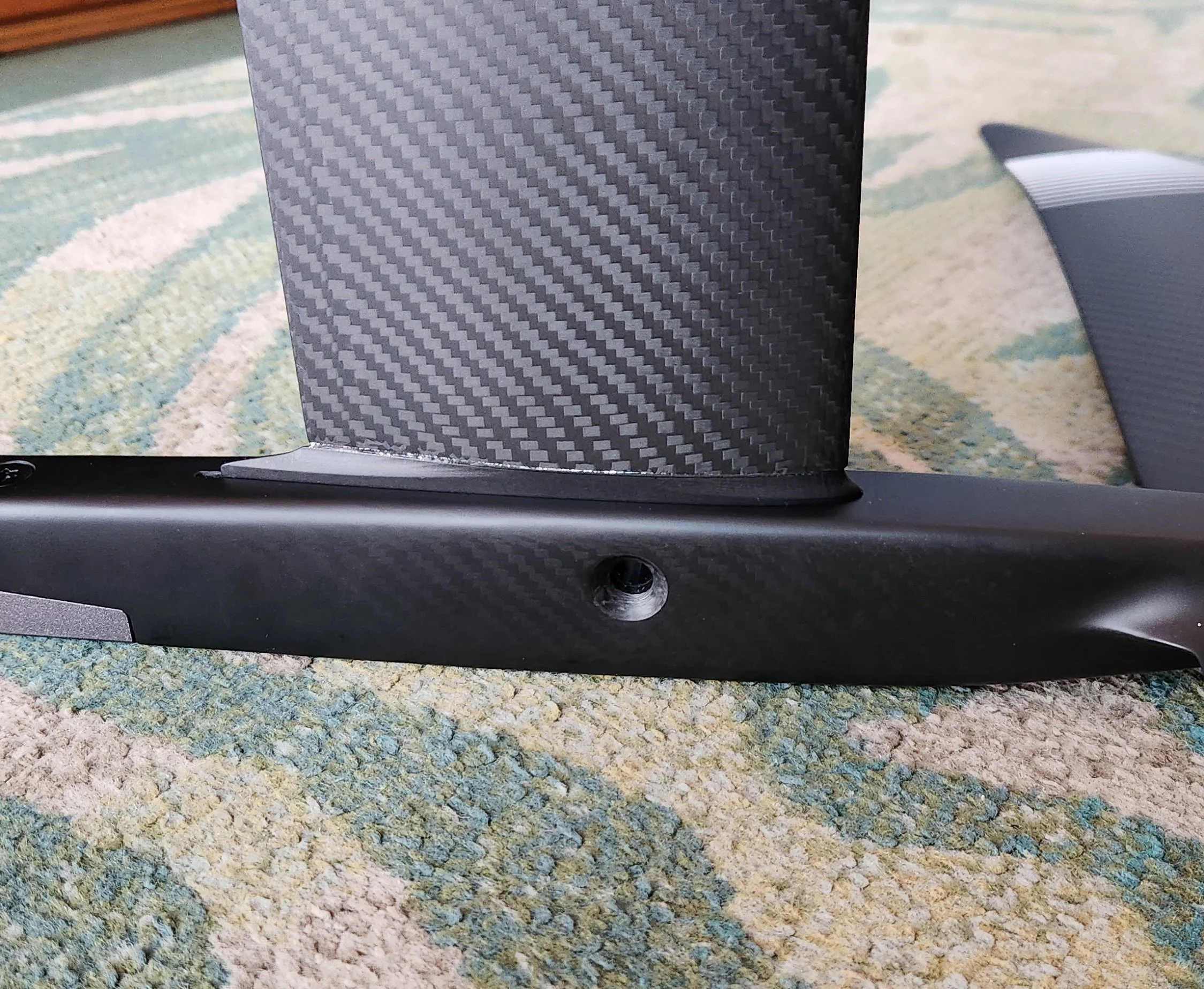

Cabrinha
Bolts: Bolts: M6 X 1.00mm x 30mm (3x),
Code Foils
Bolts: Bolts: M6 X 1.00mm x 30mm (3x),
North Foils
Bolts: Bolts: M8 X 1.25mm x 25mm (2x),
AFS Foils
Bolts: Bolts: M8 X 1.25mm x 35mm (2x), Adapters for the Takuma 3 Bolt Mast
Jim Stringfellow makes anodized adapters to fit on our Takuma 3 bolt mast. He makes an adapter for the following brands: Lift, F-One, Unifoil, Axis, Cloud 9, Cabrinha, Triton Monowing, Takuma HD, and Code. All of his adapters are for sale on his website: www.jimstringfellow.com. NoLimitz’s warranty does not extend to equipment that is damaged or lost due to the use of non-OEM adapters.
